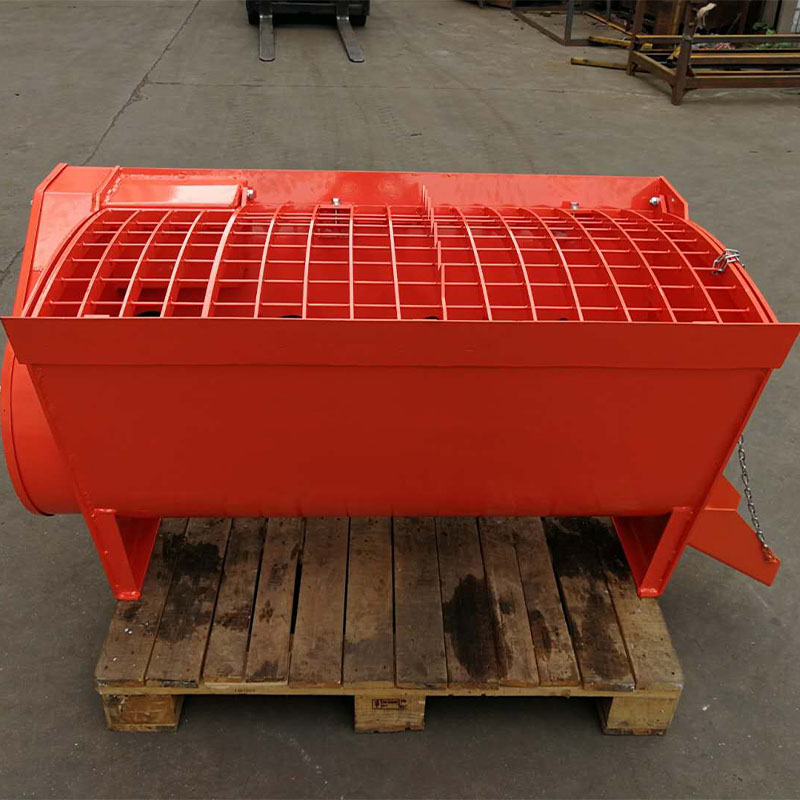

MB250
Product Advantages & Features
- Exceptional Mixing Efficiency
Large-diameter screw drive design (360mm/400mm/450mm) increases mixing capacity by over 40% compared to conventional equipment.
Optimized screw blade angle and speed configuration ensure material uniformity exceeding 95% in minimal time.
30-45L/min hydraulic flow combined with 15-18Mpa working pressure delivers powerful mixing performance.
Unique mixing chamber design effectively eliminates dead zones, guaranteeing consistent batch quality.
- Flexible Discharge Solutions
Standard Bottom Discharge: Precise control of discharge location and speed, particularly suitable for applications requiring accurate material placement.
Optional Dual-Discharge System: Combines advantages of both bottom and side discharge, adaptable to various complex working conditions.
Side discharge function enables direct truck loading or long-distance material transfer, significantly improving operational efficiency.
Hydraulically controlled discharge gate with adjustable opening meets different material discharge requirements.
- Superior Equipment Compatibility
Specifically designed for tractors and skid steer loaders.
Customized loader hook attachments available to ensure perfect connection with various host equipment brands.
Simple hydraulic connection system.
Quick coupling device enables attachment changes within minutes.
- Robust and Durable Construction
Full steel structural frame with high-strength steel at critical points.
Mixing screws manufactured from wear-resistant material, offering longer service life.
Precision-machined bearing housings with multi-stage sealing design effectively prevent dust ingress and lubricant leakage.
- Ergonomic Design Features
Scientific weight distribution design (317kg/381kg/408kg) ensures host equipment stability.
Streamlined bucket contour maximizes capacity while reducing operational resistance.
Prominent safety labels and operation instructions minimize operational errors.
| Model | MB250/MB250-2 | MB300/MB300-2 | MB400/MB400-2 |
| Volume | 250L | 300L | 400L |
| Width | 1200mm | 1400mm | 1450mm |
| Diameter of screwdrive | 360mm | 400mm | 450mm |
| Oil flow | 30L/min | 35L/min | 45L/min |
| Working pressure | 15-18Mpa | 15-18Mpa | 15-18Mpa |
| Safety guard | Yes | Yes | Yes |
| Weight | 317kg | 381kg | 408kg |
Application areas/scenarios
Landscape architecture: On-site mixing of soil conditioners.
Industrial sector: Preparation of refractory and insulation materials.
Emergency engineering: Rapid material processing during rescue operations.
