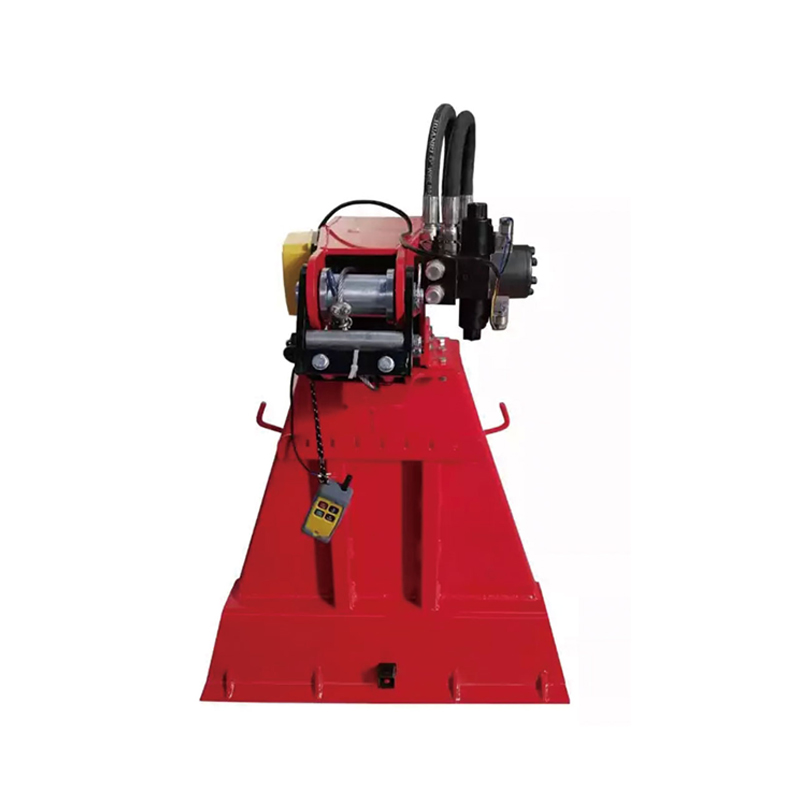

SW170M-SW170R
The SW170 series hydraulic winch is professional traction equipment specifically designed for 15-30 HP tractors, available in manual control (SW170M) and remote control (SW170R) models. With a maximum pulling capacity of 1700kg and CAT 1 standard three-point hitch compatibility, this series offers exceptional adaptability. Powered by a 400cc large-displacement hydraulic motor delivering 380Nm torque, it maintains stable performance at 16-22Mpa operating pressure. The optimized hydraulic system ensures 45m/min cable speed at 50L/min flow rate, complemented by an 18-meter long high-strength 316 stainless steel cable with excellent corrosion resistance. Featuring a compact structure (900×900×1300mm) and 120kg weight, it serves as an ideal solution for agricultural operations, forestry work, and engineering rescue scenarios.

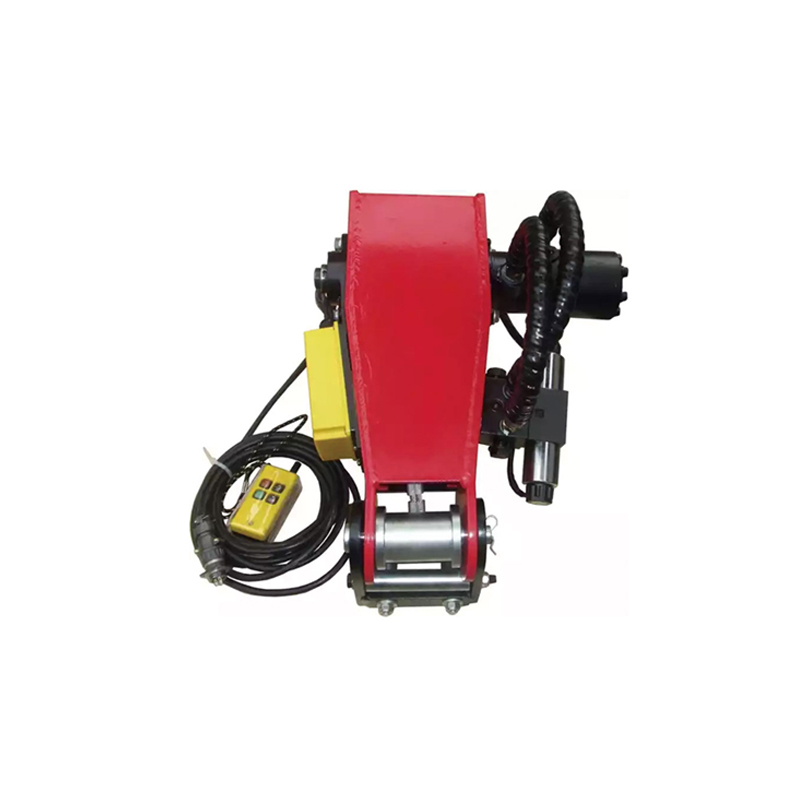

HW1700-HW1700R
The HW1700 series hydraulic winch is a high-performance traction equipment comprising manual control (HW1700) and remote control (HW1700R) models. Utilizing advanced hydraulic drive technology, this series delivers 1700kg maximum traction force at 16-20Mpa operating pressure. Equipped with a 400cc large-displacement hydraulic motor producing 380Nm torque, it maintains exceptional traction performance even under demanding conditions. The compact design (560×435×250mm) enables easy installation on various engineering machinery, making it an ideal choice for forestry, rescue operations, marine applications and other fields.

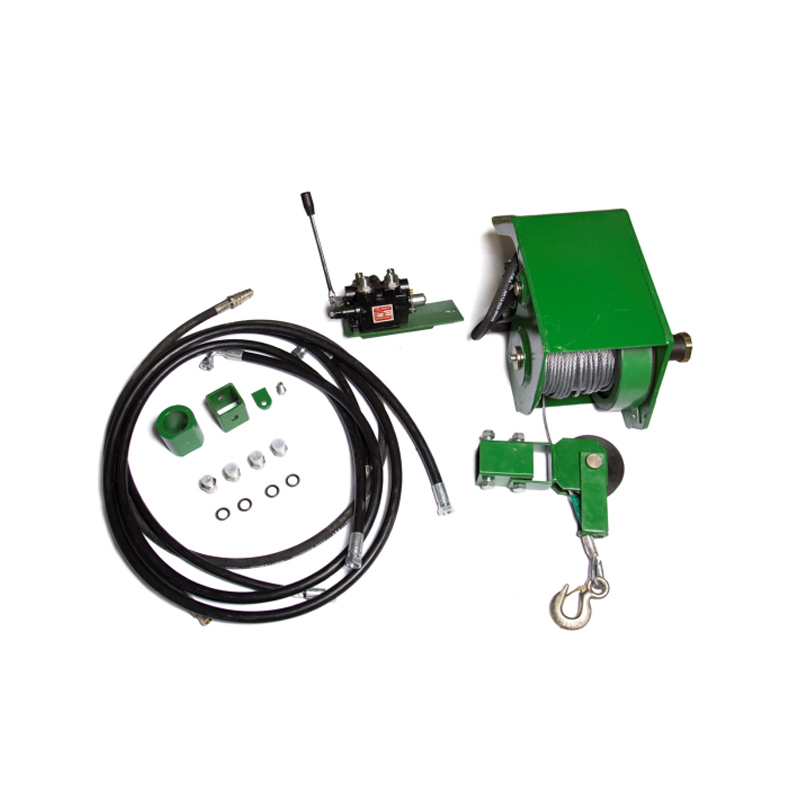

HW1400
The HW1400 hydraulic winch is a high-performance traction device engineered for demanding industrial applications. Delivering 1400kg maximum traction at 22Mpa working pressure, its broad pressure range (16-22Mpa) ensures excellent compatibility with various hydraulic systems. Equipped with a 50cc hydraulic motor producing 100Nm torque and dual hydraulic brakes, it provides reliable control for heavy loads. The winch features 25 meters of high-strength 6mm diameter steel rope, achieving a line speed of 45m/min at 50L/min hydraulic flow, perfectly balancing efficiency and power control. With a compact design weighing 70kg, it serves as an ideal solution for construction machinery, off-road recovery, and forestry operations.

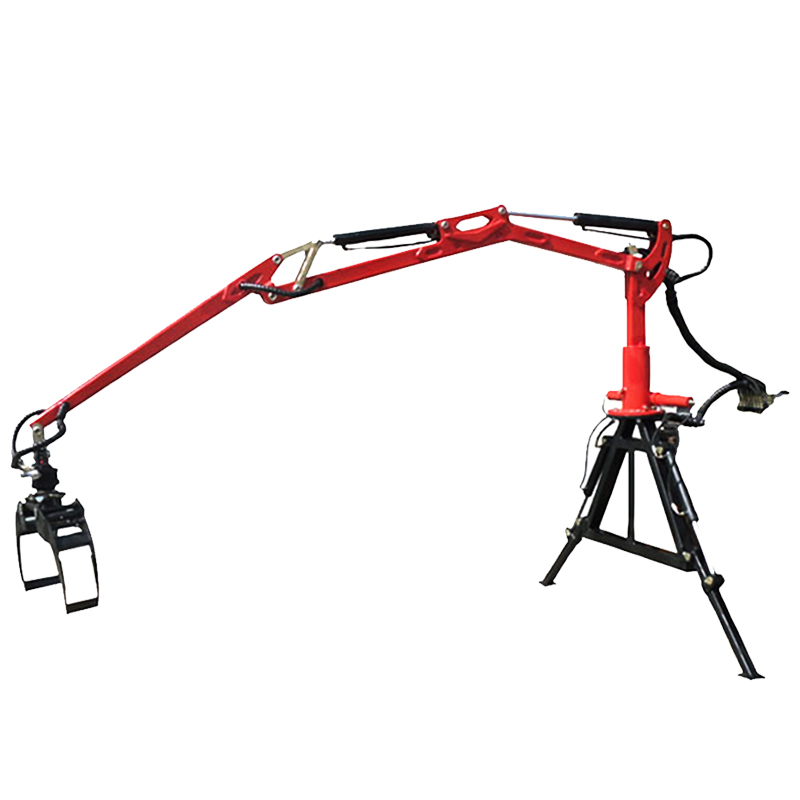

RC3400
RIMA RC3400 is a compact and efficient timber crane designed for small tractors and trailers for light-duty forestry work. With a maximum reach of 3.4 m and a lifting capacity of 250 kg, it provides smooth 360° rotation and stable hydraulic performance. Compatible with Cat-1 and Cat-2 three-point linkages, the RC3400 is easy to install and operate. Its lightweight yet durable design makes it ideal for farm, forestry, and material handling applications in tight or limited spaces.

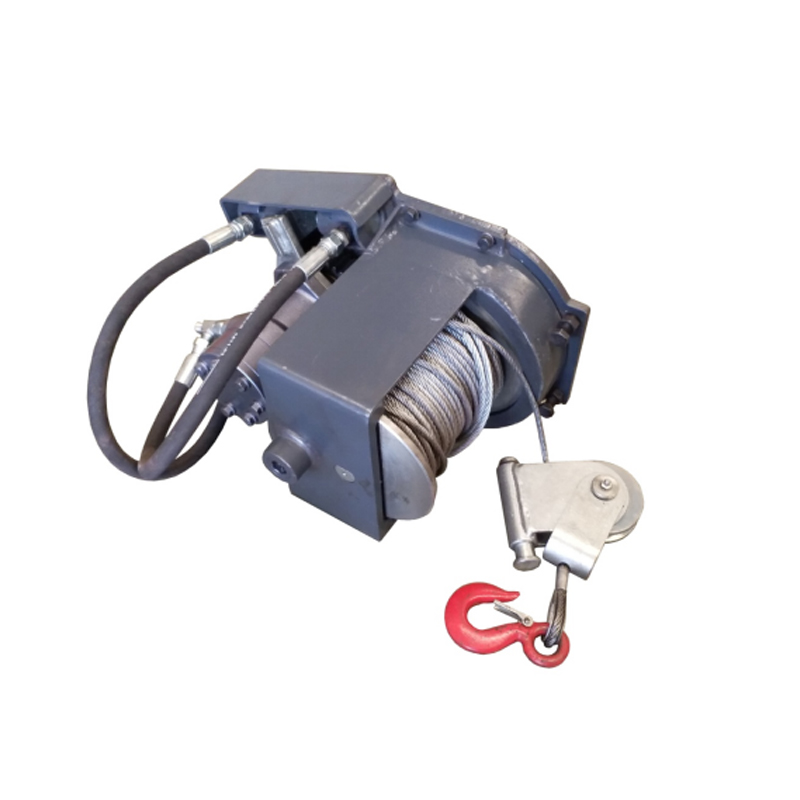

FM1300
The FM1300 hydraulic winch is a high-performance traction device engineered for various industrial and rescue applications. Delivering 1300kg of reliable pulling capacity at 175 bar working pressure, it achieves an optimal balance between efficiency and power control with a line speed of 0.8 m/sec at 40 l/min flow rate. Equipped with 35 meters of high-strength 6mm diameter steel cable, it maintains exceptional performance in long-distance operations. Weighing only 52kg (including winch, cable, and pulley), it combines lightweight design with structural integrity, making it an ideal solution for forestry work, vehicle recovery, construction projects, and marine operations.
